The AMD Ryzen 7 7800X3D has been holding steady as the best gaming CPU available to end-users, meaning many gamers are looking to move to AMD's AM5 platform, as the Ryzen 7 7800X3D continues to build on the 5800X3D's performance streak for gaming CPUs well into 2024. This is largely thanks to it leveraging its 3D V-Nand Cache advantage that has propelled the latter to become one of the best CPUs for gaming to date.
To do so, however, you need a capable motherboard and supporting low-latency RAM to allow the 7800X3D to perform to the best of its ability while focusing on performance and future upgrades. However, motherboards for the AM5 platform are fairly new primarily because of a prolonged dependence on the AM4 socket means that most AMD users are still using the last-generation socket and the fact that DDR5 RAM upgrades are not optional like the competition but a necessity when it comes to AMD's newer socket and accompanying chipsets.
Updated on June 28th, 2024, By Muhib Nadeem: The motherboard market had been on fire following the release of AMD Ryzen 7 7800X3D, though now it seems retailers are cooling off in the aftermath. Prices have begun to stabilize, and this guide has been updated to reflect this shift.
Best AMD Motherboards For Gaming In 2024
Here are our picks for the best AMD AM5-based motherboards for gaming that players can buy right now!
The Best War Games's Picks for the Best Motherboards for AMD Ryzen 7 7800X3D

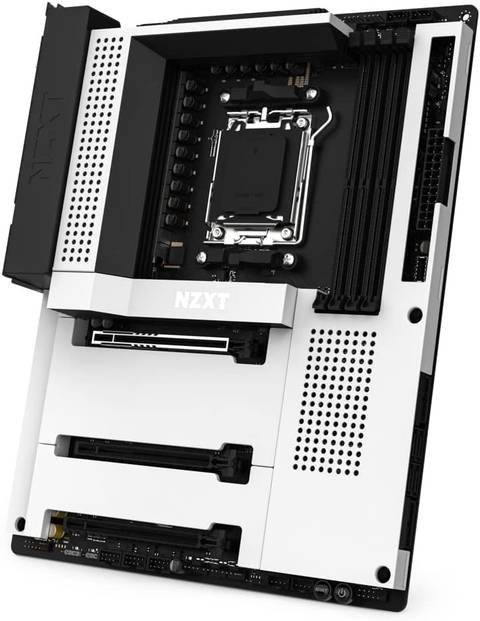

NZXT N7 B650E Gaming Wi-Fi 6 Motherboard
A Minimalistic Aesthetic All-Rounder
- Brand
- NZXT
- Memory Slots
- 4
- Memory Type
- DDR5 Upto 6000MHz+, 128GB
- Wi-Fi
- Yes, Wi-Fi 6E
- USB Ports
- Upto 20 USB Ports
The NZXT N7 B650E Gaming Wi-Fi 6 Motherboard is an excellent AMD socket AM5-based motherboard based on the 650E chipset with decent overclocking, excellent power delivery, and above-average expansion slots in tow. It comes in a white or all-black design that is enthusiast-friendly in terms of its design and feature set.
Checkbox: control the expandable behavior of the extra info- CPU Support
- AMD Ryzen 7000 Series
- Chipset
- B650E
- Socket
- AMD AM5
- Power Phases
- 16+2+1 Power phase design, 90A Smart Power Phase
- Networking
- 2.5G Ethernet, WI-FI 6/AX, Bluetooth 5.2
- Graphics Card Interface
- PCI-E 5.0
- M.2 NVMe Connector
- 3 x M2 Sockets
- Has excellent connectivity
- Trades at a significant discount over MSRP currently
- Offers a capable modern networking stack
- Supports higher end processors
- One of the best-looking motherboards in the business
- Has the potential for excellent overclockability
- Somewhat pricey for a B650E chipset
- No RGB lighting on offer
When one looks for a feature-rich AMD motherboard, a mid-range chipset would not be the first to come to mind. Thankfully, AMD's B650E chipset is a bit misleading in terms of what it is capable of based strictly on price alone.
The NZXT N7 B650E Gaming Wi-Fi Motherboard is more than just an exception to the rule for B650E motherboards, however: it can handle some of AMD's best CPUs, like the Ryzen 9 7950X/7950X3D with ease. The motherboard is made by ASROCK, but it seems to have significant design input from NZXT that makes it relatively unique as it pushes a minimalistic, clean white-on-black design that is arguably better than most of its competition.
The NZXT N7 B650E comes with an excellent networking stack that includes Wi-Fi 6, Bluetooth 5.2, and 2.5G Ethernet, ensuring that all users' gaming needs are met. Thanks to headers on the board and at the rear of the motherboard, it also features the ability to sustain as many as 20 USB ports.
With an excellent 16+2+1 phase power delivery system, the NZXT N7 B650E can handle overclocking of both the CPU and the memory sticks reasonably well, while offering tight integration with NZXT's CAM software that ensures enthusiasts building around NZXT gear would be interested in centering their builds around this particular motherboard.
All in all, the NZXT N7 B650E Gaming Wi-Fi 6 Motherboard is a capable performer with a premium design catering to gamers, enthusiasts, and creators. While it is a bit hard to get it at MSRP at times at certain retailers, it is still one of the best-looking motherboards in the market, has PCI-E 5.0 support for a GPU, and plenty of expansion potential in terms of storage if one decides to go that route. It also comes in black, for those not willing to invest in a white-colored build this time around.
It currently trades with a significant discount off its MSRP on Amazon, making it a powerful, yet inexpensive option compared to the more pricey X670E alternatives. It goes neck and neck for all features except the underlying chipset's additional PCI-E lanes itself.
GIGABYTE X670E AORUS Master Motherboard
The X670E All-Arounder
- Brand
- Gigabyte
- Graphics Card Interface
- PCI-E 5.0 x16
- Memory Slots
- 4 Slots
- Memory Type
- DDR5, AMD EXPO support Upto 8000 MHz
Gigabyte's high-end X670E offers plenty of IO and PCI-E Gen 5 support natively as it aims to couple reliability with value for money in a bid to capture the market with a competitive entry geared towards midrange/high-end users without breaking the bank.
Checkbox: control the expandable behavior of the extra info- Form Factor
- E-ATX
- Wi-Fi
- Yes, Wi-Fi 6E
- USB Ports
- 12 on-board
- CPU Support
- Ryzen 7000 series
- Chipset
- X670E
- Socket
- AM5
- Power Phases
- 16+2+2 Phase VRMs
- Audio
- Hi-Fi Audio
- Networking
- Wi-Fi 6E + Ethernet 2.5G + Bluetooth 5.3
- Has an excellent 16+2+2 phase VRM design
- Well-priced for its feature set
- Has dedicated heatsinks for the VRMs and M2 SSD slots
- Requires a BIOS update out of the box to improve boot timings
The Gigabyte X670E Aorus Master is The Best War Games's best overall pick for the Ryzen 9 7950X3D processor. While the Ryzen 7 7800X3D is aimed at a different tier of consumers that focuses primarily on gaming, it is still one of the best motherboards in the business. Therefore, it makes an appearance as one of the best-performing motherboards available for the Ryzen 7 7800X3D processor.
With excellent VRM design, a very versatile connectivity suite topped off by Wi-Fi 6E support, and dedicated heat spreaders for each M2 slot, the X670E Aorus Master comes packed with features that both gamers and creators would appreciate. The ability to overclock RAM past 8000MHz is also a plus for the motherboard, which works significantly in its favor for gamers who will look to eke out as much performance as possible from the DDR5 platform down the line.
All in all, the Gigabyte X670E Aorus Master is an extremely versatile and capable motherboard that is truly the complete package one should get if they can splurge on a processor. It would, however, help if they make sure they have a case to go with what is an above-average size E-ATX motherboard. It also trades at a decent discount over MSRP at both Amazon and Newegg currently, making it a better offering than many of its more expensive X670E-based counterparts in 2024.

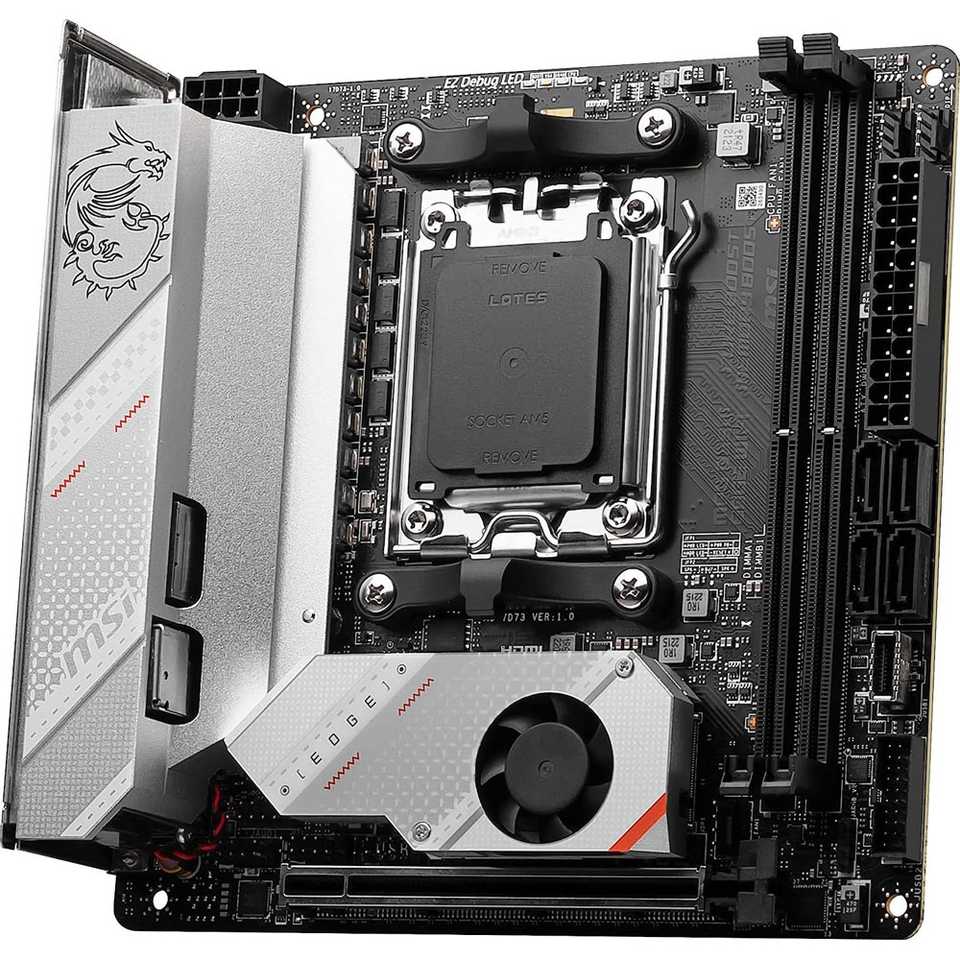

MSI MPG B650I Edge WiFi
Versatile Package
- Brand
- MSI
- Memory Slots
- 2
- Memory Type
- DDR5
- Form Factor
- Mini-ITX
The MSI MPG B650I Edge WIFI is a feature-packed Mini-ITX motherboard designed for AMD Ryzen 7000 series desktop processors. It supports DDR5 memory, up to 6600+ MHz (OC), and comes equipped with a one-of-a-kind power design featuring an 8+2+1 phase VRM with 80A smart power stages, providing stable performance even under heavy loads.
Checkbox: control the expandable behavior of the extra info- Wi-Fi
- AMD WiFi 6E
- USB Ports
- 5x Type A, 1x Type C
- Chipset
- B650
- Socket
- AM5
- Power Phases
- 8+2+1
- Audio
- Realtek ALC4080 Codec
- Networking
- Realtek RTL8125BG 2.5Gbps
- M.2 NVMe Connector
- 2
- PCI Slots
- 1x PCI-E x16
- Storage interfaces
- 4x SATA
- Comprehensive connectivity with Wi-Fi 6E
- 8+2+1 phase VRM with 80A smart power stages
- Equipped with a pre-installed I/O shield, PCI-E Steel Armor, EZ Debug LED, and Flash BIOS button for easier installation
- Lacks PCIe 5.0 for GPU and storage, potentially limiting future upgrades?.
- Only includes an HDMI 2.1 port, with no DisplayPort option.
One of the standout features of MSI MPG B650I Edge Wi-Fi lies in its support for Wi-Fi 6E and Bluetooth 5.2, providing fast and reliable wireless connectivity. The motherboard also includes a 2.5Gb Ethernet port for high-speed wired networking. For storage, it offers two PCIe 4.0 M.2 slots and four SATA III ports, which is impressive for a Mini-ITX board, allowing you to connect multiple high-speed drives.
The rear I/O panel features a variety of ports, including a 20Gbps USB 3.2 Gen 2x2 Type-C port, three 10Gbps USB 3.2 Gen 2 ports, and two 5Gbps USB 3.2 Gen 1 ports. There is also an HDMI 2.1 output for video, making it work-able for different setups. The board's design incorporates several DIY-friendly features such as PCI-E Steel Armor for durability, an EZ Debug LED for troubleshooting, and a pre-installed I/O shield.
Thermal management is also well-handled with extended heatsinks, a heat pipe, and dedicated thermal pads for the MOSFETs and M.2 slots, ensuring efficient heat dissipation. MSI's proprietary software suite, including MSI Center and Mystic Light, allows for easy system monitoring and customization, enhancing both performance and aesthetics.
The Best Motherboards for Intel Core i7 14700K for 2024
Intel's high-end Core i7 14700K is the only 14th-generation CPU with extra cores. But what if it needs a new motherboard?
Gigabyte X670E Aorus Pro X
Well-Priced Aesthetic Endeavor
- Brand
- Gigabyte
- Graphics Card Interface
- PCI-E Gen 5.0
- Memory Slots
- 4
- Memory Type
- DDR5
Boasting a fully white PCB and white heatsinks, the Gigabyte X670E Aorus Pro X looks dashing. It features an excellent 16+2+2 power phase delivery and doesn't lag behind in component compatibility or connectivity. Four M.2 slots for fast storage and impressive memory support allow the board to push the system's full potential.
Checkbox: control the expandable behavior of the extra info- Form Factor
- ATX
- Wi-Fi
- WiFi 7
- USB Ports
- Rear: 12, Front: 9
- M.2 NVMe Connector
- 4
- CPU Support
- AMD Ryzen 7000 series
- Chipset
- X670E
- Socket
- AM5
- Power Phases
- 16+2+2
- PCI Slots
- 3x PCI-E x16
- Audio
- Realtek Audio CODEC
- Networking
- Intel 2.5G LAN, Bluetooth 5.3
- Offers an excellent silver-and-white look for white PC builds
- Considerably well-priced
- Carries Dual PCI-E 5.0 M2 slots out of a total of 4 on the board
- Houses an excellent power delivery mechanism
- Limited RGB software suite
- Multiple users report having issues with the on-board Wi-Fi
For users looking for an all-white PC build in 2024, one can't really go wrong with the Gigabyte X670E Aorus Pro X. It packs PCI-E 5.0 support for both, its GPU and storage options in addition to excellent power delivery in tow, thanks to a 16+2+2 phase digital VRM. It also has plenty of expansion slots on the board, which are complemented by a capable networking stack that offers Wi-Fi 7, 2.5G Ethernet, and BT 5.3.
With what is one of the most pleasing aesthetics money can buy on the AM5 platform currently, while also being a very competitive mid-range motherboard thanks to its competitive pricing versus older X670E motherboards, the Gigabyte X670E Aorus Pro X makes for one of the best-value high-end motherboards currently available to end users.
Gigabyte's RGB software, however, is still woefully limited in 2024 and most users are recommended to consider 3rd party solutions such as Signal RGB or even Razer's Synapse for better control of RGB across their components. At the same time, some users are reporting issues with the Wi-Fi adapter onboard the Gigabyte X670E Aorus Pro X, which could be an issue for users aiming to go about their work wirelessly even though most gamers prefer a wired Ethernet connection.

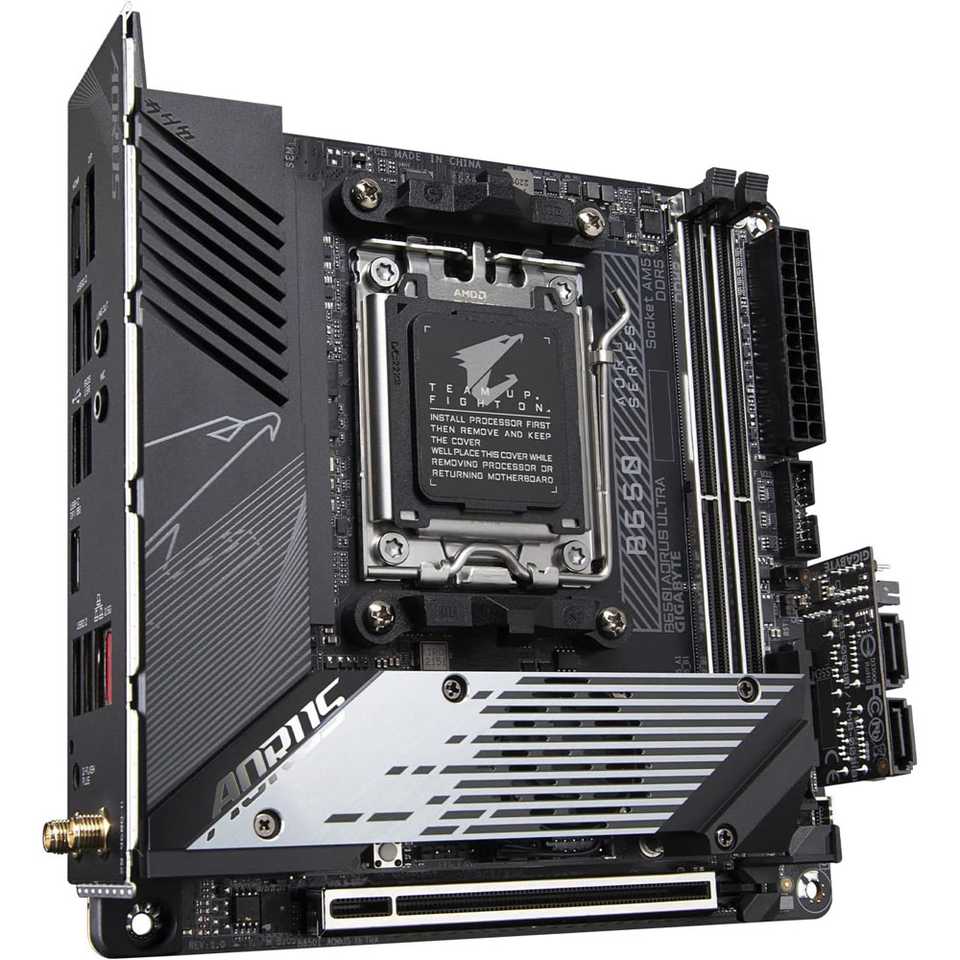

GIGABYTE B650I AORUS Ultra
Small in Size, Big On Features
- Brand
- Gigabyte
- Graphics Card Interface
- PCI-E Gen 4
- Memory Slots
- 2
- Memory Type
- DDR5
- Form Factor
- Mini-ITX
The B650I Aorus Ultra brings a robust power delivery system, a 12-layer 2X copper PCB, PCI-E 5.0 support for M.2, and an adequate number of USB ports for connectivity. It's already unmatched at this price for the mentioned features, but it stands out due to the availability of 3x M.2 ports and 4x SATA ports which is a rarity for most M-ITX motherboards in its price range.
Checkbox: control the expandable behavior of the extra info- Wi-Fi
- Realtek WiFi 6E RTL8852CE
- CPU Support
- Ryzen 7000 series
- Chipset
- B650
- Socket
- AM5
- Power Phases
- 8+2+1
- Audio
- Realtek ALC4080 Codec
- Networking
- Intel 2.5GbE
- M.2 NVMe Connector
- 3
- PCI Slots
- 1x PCI-E x16
- Storage interfaces
- 4x SATA
- Offers PCI-E 5.0 storage connectivity on a B650 motherboard
- Offers as many as 3 M2 slots
- Packs in Wi-Fi 6E, BT 5.3, and 2.5G Ethernet
- Relatively affordable
- Has a somewhat limited VRM offering
- Limited expansion ports
- Users report relatively poor boot times
Users who require a more compact motherboard can turn to the capable and relatively inexpensive Mini-ITX B650I Aorus Ultra motherboard, which packs in an impressive number of features for a price that is considerably lower than alternatives with more powerful B650E/X670/X670E chipsets. The motherboard also offers superior durability compared to many of its counterparts, including a reinforced steel socket for a discrete GPU to slot into.
It offers a generous amount of connectivity for its form factor, covering all the necessities such as Wi-Fi 6E, 2.5G Ethernet, and Bluetooth 5.3, even as it offers more storage options (triple M2 slots and quad SATA ports) to bolster its use case for HTPCs while offering PCI-E 5.0 connectivity for the primary M2 socket. At the same time, given its limited space, the motherboard does cut down on its VRM offerings to a more entry-level approach to match its chipset, but one that slightly underwhelms versus the 'Ultra' moniker it carries. Meanwhile, users seem to have issues such as prolonged boot sequences that can somewhat dim their experiences, even after multiple BIOS updates.
The Best Mini-ITX Motherboards for 2024
Mini-ITX motherboards are small, but they still pack a punch with unbelievable features that weren't possible a decade ago.

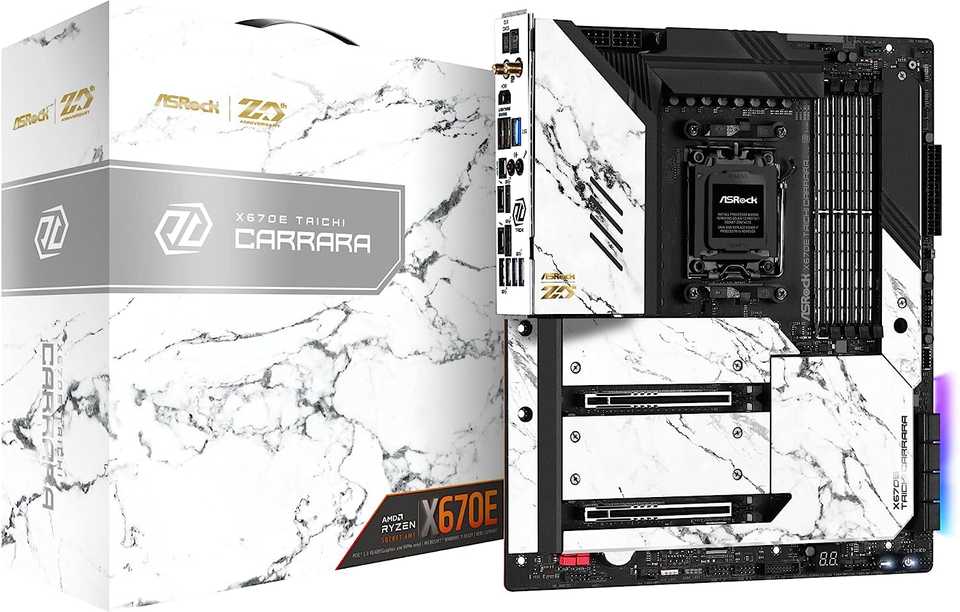

ASRock X670E Taichi Carrara
Marble-Infused Superiority
- Brand
- ASRock
- Graphics Card Interface
- PCI Express 4.0/5.0
- Memory Slots
- 4
- Memory Type
- DDR5 (Upto 7800+ MHz)
- Form Factor
- EATX
The ASRock X670E Taichi Carrara is one of the best-looking motherboards for AMD's latest Ryzen 7000 series CPUs. It also comes packed with features including excellent networking, storage options, and dual PCI-E 5.0 x16 slots in tow.
With excellent 24+2+1 power phases, high memory overclocking support, and RGB lighting on the motherboard itself, it should please gamers, enthusiasts, and power users looking beyond simply the excellent aesthetic it has on offer.
- Wi-Fi
- Yes, Wi-Fi 6E
- USB Ports
- 15 USB Ports
- M.2 NVMe Connector
- 4 PCI-E NVMe Slots
- CPU Support
- AMD Ryzen 7000, 7000X3D CPUs
- Chipset
- AMD X670E
- Socket
- AMD AM5
- Power Phases
- 24+2+1
- Networking
- 2.5GB LAN, WI-FI-6E, BT 5.3
- Is arguably the best-looking X670E motherboard in 2024
- Offers PCI-E 5.0 support for both the M2 and GPU slots on-board
- Has dedicated heatsinks for the VRMs and M2 SSD slots
- Comes with a complementary Carrara-themed 120mm fan
- Has an industry-leading 24+2+1 phase VRM design
- Considerably expensive
For users looking for a premium AMD motherboard, the X670E-based ASRock Taichi Carrara has them more than covered. As premium as they come in terms of build quality and looks, the ASRock even throws in a free limited edition fan into the mix. With some of the best power delivery mechanisms in the business to power anything up to a Ryzen 9 7950X/7950X3D or their successors down the road.
At the same time, it comes well-equipped with connectivity, offering comprehensive PCI-E 5.0 compatibility, Wi-Fi 6E, BT 5.3, as well as 2.5G ethernet in tow. This, in addition to 8 SATA ports and USB 4 ports on offer, means that the ASRock X670E Taichi Carrara is one of the most future-proof options available on the market, although it costs upwards of $500 currently. While it is priced at a premium, it does cost considerably less than most of its competition's flagship X670E motherboards, which can range from $650 to upwards of $900 for some of the highest-end models, making it a relative bargain compared to motherboards like ASUS's ROG Crosshair X670E Extreme.
What Makes The AMD Ryzen 7 7800X3D Special?
AMD Ryzen 7 7800X3D
Octa-core 3D V-Cache Enabled Monster
- Brand
- AMD
- CPU Model
- Ryzen 7 7800X3D
- CPU Socket
- AM5
- Cores
- 8
The AMD Ryzen 7 7800X3D is AMD's latest and greatest CPU when it comes to gaming. With an excellent and highly efficient gaming performance that tops the charts currently, the Ryzen 7 7800X3D is here to stay and has a crown to claim thanks to its 3D V-Cache-enabled prowess when it comes to gaming on a PC.
The octa-core CPU currently happens to be the fastest in the business for gaming even as it leads efficiency charts at the top, making it a very sought-after gaming upgrade.
- Threads
- 16
- PCIe 4.0 Support
- Yes, Supports up to PCI-E 5.0
- Architecture
- Zen 4
- Process
- 5nm
- Base Clock Speed
- 4.2GHz
- Boost Clock Speed
- 5.0GHz
- Cache
- 8MB L2 + 96MB L3
- TDP
- 120W
- iGPU
- Yes, Integrated Radeon 2 Core
- Offers the best-in-class gaming performance of any CPU to date
- Considerably cheaper than competitors
- One of the most power-efficient CPUs on the market
- Has integrated graphics unlike its predecessor
- Allows for a fair bit of overclocking with a supporting motherboard
- Somewhat pricey for an 8-core CPU
- Slightly underwhelming in most multicore productivity tasks
The AMD Ryzen 7 7800X3D is an 8-core, 16-thread gaming CPU that offers the best gaming performance any current-generation CPU can offer, including the much more expensive Intel Core i9 13900K/KS and even the AMD Ryzen 9 7950X and its X3D variant, the Ryzen 9 7950X3D. It does so by leveraging the large amount of stacked L3 cache to compute data much faster in a way that ensures better gaming performance than most of its peers.
While productivity performance gains are negligible and the lower clocks to adjust with the 3D V-Cache's thermal limitations tend to make it a poor multicore processor for most benchmarks, it offers the fastest gaming performance a CPU is capable of currently, establishing a significant lead in multiple titles, making it an excellent gaming CPU. This makes it an excellent recommendation to power users, enthusiasts, and gamers, provided that gaming is the primary use case for the PC in question.
More Options
If users are on the fence about which motherboard to get for the 7800X3D and would like more options to decide, they can also revisit The Best War Games's guide on the best motherboards for the Ryzen 9 7950X3D. It features some more premium offerings than the current list, but all of those would serve users well with a Ryzen 7 7800X3D if they are willing to pay the price.
Choosing The Best Motherboard For the AMD Ryzen 7 7800X3D
The AMD Ryzen 7 7800X3D is, without question, a gaming CPU first and foremost and therefore, it might feel lacking for everything non-gaming. This does give it an advantage in its excellent efficiency with gaming alongside limited thermal demands, especially compared to some of its peers. For instance, Intel CPUs tend to offer higher clocks and more cores, resulting in higher power and thermal needs as they attempt to compete in an increasingly crowded enthusiast gaming market for CPUs.
AMD's higher-end AM5 chipsets come in two major flavors in the mid to high-end range: the B650 and X670, both of which have upgraded B650E and X670E chipset versions respectively (the lower-end A620 chipset is not being considered by The Best War Games for the Ryzen 7 7800X3D at the moment).
The key difference here is that the 'E' versions come with increased PCI-E 5.0 support, which entails better compatibility with tech down the line. It is pertinent to point out that there are no competitive PCI-E 5.0 GPUs available currently. All of Nvidia's RTX 4000 series and AMD's RX 7000 series are currently PCI-E 4.0 GPUs.
This makes picking the best candidates for AMD's best gaming CPU a relatively straightforward process based on the following factors:
Upgradability: While AM5 is a new socket and brings a lot of upgrades with the accompanying chipsets, not all motherboards are equal contenders when it comes to allowing upgrades. Some are restricted to PCI-E 4.0 speeds on both the PCI-E x4 NVME slots and the PCI-E x16 slots that modern GPUs occupy. Others compromise by using limited power delivery options that could affect the built-in PBO overclocking potential of the Ryzen 7 7800X3D or subsequent processor upgrades. Some users might want more storage expansion slots as well as additional USB ports, which are generally found to increase in number and functionality as one moves upwards in terms of costs and underlying chipsets.
Pricing: The biggest advantage that the AMD Ryzen 7 7800X3D has over some of its more expensive AMD and Intel counterparts is that it currently costs just over $350. This means that gamers will probably appreciate further savings without compromising on the motherboard meaningfully, making it a relatively price-conscious purchase in 2024.
Aesthetics: The Ryzen 7 7800X3D is unapologetically a gaming CPU primarily, and it does cater to a certain audience that wants better looks, customizability, and RGB lighting. This is further reinforced by the fact that users need to pick out a cooler for the 7800X3D, allowing for it to be customized much more than some of its lower-budget alternatives. Users can choose between minimalist ITX motherboards and mid-range ATX motherboards all the way to larger E-ATX models in addition to a white or black theme, additional options such as internal or external displays, and ARGB lighting on the motherboard itself.
FAQ
Q: What is the difference between the AMD B650 and B650E motherboards?
While B650 and B650E are identical for the most part, the B650E has support for PCI-E 5.0 while B650 is locked to PCI Express 4.0 speeds for all its components by default.
Q: Do gamers need a PCI-Express 5.0 motherboard right now?
No, currently there are no AMD or Nvidia (or even Intel) GPUs that are compatible with PCI-E 5.0 speeds or even harness PCI-E 4.0 x16 to its full capacity. However, that could change soon. Getting a PCI-E 5.0-enabled motherboard might be more of a future-proof measure than anything else with PCI-E 5.0 storage already on the horizon this year, which will also take advantage of PCI-E 5.0 speeds.
